OBD1 TUNER PROGRAM

OBD1 Screen Shots Base Fuel
Boost
DTC List
Glow Plug
Injection Timing
Transmission
Click Here for OBD1 Help PDF Book
Click Here for USB Drivers
See Programming Software Price List to view details on purchasing the OBD1 Tuning System

OBD1 TUNER PROGRAM DESCRIPTION

The OBD1 Tuner program is a general purpose ECM calibration editor that allows you to make a wide variety of calibration changes to your vehicle's OBD1 ECM/PCM from an "easy-to-use" Windows arrangement.

The program locates and displays the calibration parameters in standard engineering units so there's no need to work with or even understand hex and binary numbers. We've tried to make the tables simple to understand as they will often correspond to what your scan tool shows you.

With the addition of the appropriate ECM Definition File, the OBD1 Tuner program supports a wide range of vehicles, from 1982 through 1995 including the LT1 and L99 Flash ECM's from the LT1 cars.

Each ECM Definition file is designed to give you access to the calibration parameters required to support major engine modifications, such as camshaft upgrades, Vortec cylinder heads or Edelbrock parts, larger displacement (strokers), Injector size changes, and superchargers, etc.

The sample shown below is a type $42 ECM (1227747) used in standard duty 87-91 C/K Pickup Trucks and Vans. The ECM Definition Files for the next generation of PCM's are considerably larger and include transmission control functions.

This is the ONLY software package available for editing the GM 6.5 Turbo Diesel!

  • ECM Switches - on/off functions for diagnostic trouble codes or enabling or disabling certain characteristics of the engine or transmission

  • ECM Constants - Single value functions such as:

    • Injector Flow Rate

    • Engine Displacement

    • EGR Parameters

    • Fan On/Off Temperatures

  • Two and Three Dimension Tables

    • All values in engine units, there is no Hex code to learn or convert to real world numbers, it's all done for you!!

    • Tables are based on RPM, throttle position, speed, etc. Most are self-explanatory

Type $42 ECM Drop Down Menu (1227747 ECM) (click to enlarge)


Typical 2D Table


"Pump Shot" vs. Differential TPS (Added fuel for acceleration)


Changes to calibrations may be made in the table or the graph format

Typical 3D Table (Main Spark in Crank Degrees vs. RPM and Manifold Pressure)


Changes can be made on the table or the 3D graph by "clicking and dragging" a data point.

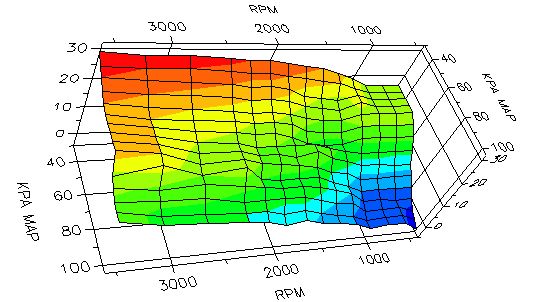

Main Spark Graph


We sell this as a complete package including 6.5 Turbo Diesel definition files and include an EPROM Programmer (new Automatic version), a quality EPROM Eraser, and necessary MEMCAL and EPROM adapters so you don't have to solder or de-solder anything.

IMG_0230.JPG IMG_0231.JPG

IMG_0232.JPG IMG_0233.JPG

Chevy & GMC Trucks:

PROGRAM
ID BYTE

ECM P/N

PLATFORM

EPROM TYPE/SIZE

$27

1227137

86 Astro/Safari Van, Caprice, Le Sabre, Monte Carlo LB4, 4.3L

2732A

$76

1228934

85-93 C/K Truck, Commercial Truck, (HD) Manual Transmission LB4, 4.3L

2732A

$42

1227747

87-91 C/K Truck, Van, 4.3L, 5.0L, 5.7L, & 7.4L

2732A

$4F

1228747

87-92 C/K Truck, Van, 5.7L & 7.4L (HD)

2732A

$3F

1227429

86-88 2.8L LL2, 2.8L LL2 S-10

2732A

$4E

1228062

89-90 4.3L LB4 S-10, 2.8L LL2 S-10
89-93 2.8L LL2 S-10

2732A

$A0

16144288
16143900

91-92 4.3L S-10 & C/K Truck

2732A

$58

1227749

91-93 Syclone & Typhoon

27C128

$85

16147060 or
16127470

91-93 C/K Truck, Van, 5.7L & 7.4L (HD)

27C256

$53

1227165

87-89 S-10 Truck, 2.5L, LN8

27C128

$83A

1227165

90-91 S-10 Truck, 2.5L, LN8

27C128

$94

1227165 or
16156647

91-93 S-10 Truck, 2.5L, L38

27C128

$A4

16147525

91-98 Commercial (Medium Duty) Trucks, LS0 6.0L

2732A

$6A

1228838

90 Trans Sport, Silhouette, Lumina APV LG6 3.1L V6
91-93 Isuzu 3.1L V6

2732A

$98

16149405

91-93 Trans Sport, Silhouette, Lumina APV LG6 3.1L V6

2732A

$99

16146299

92 C/K Truck, Van, 4.3L, 5.0L, 5.7L, & 7.4L

2732A

$1A

16196390 or 16202995

94-95 C/K Diesel Truck L57, Auto Transmission, TCM
93-95 C/K Diesel Truck L65, Auto Transmission, TCM

27C128

$D3

16128420

92-93 C/K Diesel Truck L65, Auto Transmission, TCM

27C128

$D5

16156647

92 S-10 Truck, Astro Van 4.3L, L35 CPI

27C256

$8BA

16197427

93 S/T Trucks, 4.3L, L35 CPI

27C512

$9A

16156480, 16196396 or 16171199

93-95 C/K Truck, Van, 5.0L & 5.7L, Manual Transmission

2732A

$E6

16168625

93 C/K Truck, Van, 4.3L, 5.0L, & 5.7L

27C512

$0D

16196395 or 16197427

94-95 C/K Truck, Van, S-10 LN2 (16168505), 4.3L, 5.7L & 7.4L

27C512

$0DA

16196395 or 16197427

94-95 Truck, Van, 4.3L L35 CPI

27C512

$0E

16196395 or 16197427

94 C/K Truck, Van, 5.7L & 7.4L (HD)

27C512

$31

16197427 or 16156930

95 C/K Truck, Van, 5.7L & 7.4L (HD)
95-96 Hummer H1 (Gas)

27C512

$8C

16197427
16245358

94 S/T Trucks, L35 4.3L
95 C/K Truck, Van, 4.3L

27C512

$8CA

16245358

95 Truck, Van, 4.3L L35 CPI

27C512

$63

16197427

96-97 C/K Truck, L05 EXPORT ONLY

27C512

$EC

16212488

94-95 C/K Truck, with 6.5L Turbo VIN "S" and VIN "F"

27C512

$ECA

16212488

94-95 C/K Truck, with 6.5L Turbo VIN "S" and VIN "F" Variant

27C512

$ECB

16212488

94-95 C/K Truck, with 6.5L Turbo VIN "S" and VIN "F" Variant

27C512

$ECC

16212488

94-95 C/K Truck, with 6.5L Turbo VIN "S" and VIN "F" Variant

27C512

$ECD

16212488

94-95 C/K Truck, with 6.5L Turbo VIN "S" and VIN "F" Variant

27C512

$ECS

16212488

94-95 C/K Truck, with 6.5L Non-Turbo VIN "S" 4L60E

27C512

$FD

16212488

94-95 C/K Truck, with 6.5L Turbo Manual Transmission

27C512

Chevy Cars:

PROGRAM
ID BYTE

ECM P/N

PLATFORM

EPROM TYPE/SIZE

$1F

1226870

85 Y CAR 5.7L TPI (L98)
85 F CAR 5.0L TPI (LB9)

2732A

$27A

1226868

85 Impala, Caprice, El Camino 4.3L (LB4)

2732A

$32

1227165

86 Y & F CAR 5.0L/5.7L TPI

27C128

$32B

1227165

87-88 Y & F CAR 5.0L/5.7L TPI

27C128

$3A

1227302

86-89 F CAR LB6/LB8 V6

2732A

$41

1227746

87 Caprice/Monte Carlo 4.3L LB4

2732A

$4D

1228063

88 F CAR 5.0L LO3 TBI

2732A

$61

1228746

89-92 F & B Cars, LO3 & LO5 Engine

2732A

$6E

1227165

89 Y & F CAR 5.0L & 5.7L

27C128

$88

1227730 or 16197128

90-92 F CAR LH0 V6
90-94 Cavalier/Sunbird LH0

27C256

$8D

1227727 or 1227730

90-91 Y CAR 5.7L TPI
90-92 F CAR 5.0L & 5.7L TPI

27C256

$8E

1228331

90 Corvette ZR1 (LT5)

27C256

$AF

1228331

91 Corvette ZR1 (LT5)

27C256

$62

16136965

91- 93 Caprice, LB4, LO3 & LO5 Engine

2732A

$D0

16163860 or
16163993

92 Corvette ZR1 (LT5)

27C256

$DA2

16159278

92-93 Y CAR 5.7L, LT1

27C256

$DA3

16159278

93 F CAR 5.7L, LT1

27C256

$F0

16163993 or
16196394

93-95 Corvette ZR1 (LT5)

27C256

6$EE

16181333 or
16188051

94-95 Y, F & B CAR, Cadillac 5.7L, LT1, L99 (FLASH) (incl. 'Rev B')

FLASH

Pontiac / Buick / Olds Cars:

PROGRAM
ID BYTE

ECM P/N

PLATFORM

EPROM TYPE/SIZE

$1D

1226459

84-85 LM9 3.8L V6 Turbo Buick/Pontiac

2732A

$2A

1227065

85 LN3 3.8L Buick/Olds

2732A

---

1226869

84-85 Pontiac Fiero 4 Cyl Iron Duke

2532

$14

1226156

84 Pontiac Fiero 2.5L 4 Cyl. LR8

2532

$1C

1226864

85-86 Pontiac Fiero 2.5L 4 Cyl. LR8

2532 or 2732A

$24A

1226869

85 Pontiac Fiero 2.8L V6

2732A

$24

1227170

86-88 Pontiac Fiero 2.8L V6

2732A

$3E

1227730

87-88 Buick/Pontiac/Olds, LL8 2.0L

27C128

$31B

1227148

86 6000, Cutlass, Delta, Le Sabre LG3, 3.8L, V6

2732A

$T31

1227148

86-87 Turbo Buick
89 Trans Am LC2

2732A

$48

1227748

87-88 Pontiac Fiero 2.5L 4 Cyl. LR8
87 Grand Am L68
87-90 Celebrity, 6000, Cutlass, Ciera, Century 2.5L 4 Cyl. LR8

27C128

$46

1227730

87-88 Corsica, Beretta, Tempest 2.8L LB6 V6

27C256

$55

1227730

87-88 Celebrity, 6000, Ciera, Cutlass, Century 2.8L LB6 V6

27C256 or 27C128

$44

1227783

87-88 Buick/Pontiac/Olds, LG3 3.8L, V6

2732A

$5F

1227748

89 Grand Am, Cutlass, Skylark 2.5L, L68, 4 Cylinder

27C128

$8CB

1227748

90-91 Grand Am, Cutlass, Skylark 2.5L, L68, 4 Cylinder

27C128

$89

1227727

90-92 Buick/Pontiac/Olds W-Body LR8, 2.5L

27C128

$58A

1227749

87-90 Sunbird, Grand Am, 2.0L, LT3 Turbo

27C128

$5B1

1228253

88 Buick/Pontiac LN3, 3800, V6

27C256

$5B2

1228253

89-91 Buick/Pontiac LN3, 3800, V6

27C256

$5B3

16141470

91 Buick/Pontiac L27, 3800, V6

27C256

$5B4

16141470

92-93 Buick/Pontiac L67, 3800, Supercharged

27C256

$5B5

16132792 or
16141470

90-92 Pontiac W-Body L27, 3800, V6

27C256

$F5

16177107 or
16141470

93 Buick/Pontiac/Olds L27, 3800, V6

27C256

$5B6

16183247

95 Buick/Pontiac L36, 3800, V6

27C512

$5B7

16183247

94-95 Buick/Pontiac L27, 3800, V6

27C512

$5B

16183247 or
16197428

94-95 Buick/Pontiac L67, 3800, Supercharged

27C512

$1FA

16196387

94-95 Buick/Olds L82, 3.1L, V6

27C256

$2E

16196401

94-95 Buick/Pontiac/Olds LQ1, 3.4L, V6

27C256

$6D

1227730

87-89 Buick/Pontiac LB6, 2.8L, V6
89-90 Buick/Pontiac LH0, 3.1L, V6

27C256

AUR-ENG

16197429

94-95 Olds Aurora 4.0L

27C512

(additional $29.95)

$8F

1227727

89-90 Buick/Pontiac LG5 3.1L V6 MFI Turbo

27C256

$50

1228321

89-90 Cavalier, Sunbird LL8 2.0L

27C128

$70

1227748

90-91 Cavalier, Sunbird LM3 2.2L

27C128

$A1

1227730

91-93 J, L, W Cars LH0 3.1L V6

27C256

$A7

1228708

90 2.3L Quad4 HO

27C256

$6C

1228706

89 Grand Am, Cutlass, Calais, Skylark LG7 3.3L, V6

27C256

$AE

1228706

91 Grand Am, Achieva, Skylark, Celebrity, 6000, Ciera, Cutlass LG7, 3.3L, V6

27C256

$D4

1228706

92-93 Grand Am, Achieva, Skylark, Century LG7, 3.3L, V6

27C256

$DF

16149396

91-93 Buick/Pontiac LQ1 3.4L V6
93 Buick/Pontiac LH0 3.1L V6

27C256

$5C

1227749

88 Grand Am, Cutlass, Calais, Beretta LD2/LG0 (Quad 4)

27C256

$6B

1228707

89 Grand Am, Cutlass, Calais, Beretta LD2/LG0 (Quad 4)

27C256

$8B

1228707 or
1228708

90 Grand Am, Cutlass, Calais, Beretta LD2/LG0 (Quad 4)

27C256

$A8

1228707 or
1228708

91 Grand Am, Cutlass, Calais, Beretta LD2/LG0 (Quad 4)

27C256

$CE

16156450

92 Grand Am, Cutlass, Calais, Beretta LD2/LG0/L40 2.3L (Quad 4)

27C256

$E8

16173278

93 Grand Am, Achieva, Skylark L40, 2.3L, 4 Cyl.

27C512

$F1

16191947

94-95 LN2 2.2L Pontiac/Buick/Olds

27C512

$36

16196285

95 LN2 2.2L Cavalier/Sunbird

27C512

Cadillac:

PROGRAM
ID BYTE

ECM P/N

PLATFORM

EPROM TYPE/SIZE

CD1

16132240

90 Cadillac LW2, 4.5L, V8 (ATTL)
91-92 Allante LQ6 4.5L V8 (AUMF)

27C512

NS1

16132240

91-93 Cadillac L26, 4.9L, V8 (BWYA, BWYH, BWYJ, BWYN, BWXZ, BWYY)

27C512

NS2

16132240

91 Cadillac L26, 4.9L, V8 (AYFD, AYFP)

27C512

NS3

16132240 or
16123860

91-93 Cadillac L26, 4.9L, V8 (AZCP, AZXF, BBWZ, BBXD, BBXF, BBXL)

27C512

NS4

16132240

91-92 Cadillac L26, 4.9L, V8 (AZPW, AZCP)

27C512

NS5

16196347

94 Cadillac L26, 4.9L, V8, Manual (BWYZ)

27C512

NS6

16196347

91 Cadillac L26, 4.9L, V8 (ATCX)

27C512

NS-37ENG

16196347

94-95 Cadillac Northstar (4.6L, V8 L37) (BKSA)

27C512

(additional $29.95)

NS37-TCM

16196347

94-95 Cadillac Northstar (4.6L, V8 L37) (BKSA)

27C512

(additional $29.95)

Australian Holden:

PROGRAM
ID BYTE

ECM P/N

PLATFORM

EPROM TYPE/SIZE

$5D

1227808

88-89 Australian Holden (Early VN)

27C128

$A5

1227808

88-90 Australian Holden (Late VN)

27C128

$B1

1227808

90-91 Australian Holden (Late VN)

27C128

$DB

1227808

90-92 Australian Holden (VP), Group A V8, HSV

27C128

$FB

1227808

92 Australian Holden (VP)

27C128

$11

16176424 or
16195699

93-94 Holden VR 3.8L, 5.0L Auto

27C512

$12

16176424 or
16195699

93 Holden VR 3.8L, 5.0L Manual

27C256

$3C

16176424 or
16195699

Holden HSV VR GTS 5.7L Manual

27C256

$5A

1683082 or
16206305

Holden VS 5.0L V8

27C256

$58H

16176424 or
16195699

Holden VS HSV 5.0L V8

27C512

$5BH

1683082 or
16206305

Holden VS HSV 5.8L V8

27C512

$83

16176424 or
16195699

Holden VS 5.0L V8

27C256 or 27C512

$84

16176424

Holden VS HSV 5.8L V8

27C512

Edelbrock:

PROGRAM
ID BYTE

ECM P/N

PLATFORM

EPROM TYPE/SIZE

3500

Edelbrock

Edelbrock Pro-Flow Systems

27C256

UPDATE: January 5, 2010
Updating your operating OBD1 software:

-- Version 2.25 update for OBD1 Editing Software
-- Version 1.33 update for OBD1 Realtime Software

If you wish to buy a better EPROM Programmer or UV Eraser:

Xtronics, Manufactures the Pocket Programmer, an economically priced programmer that is compatible with all the GM EPROMs and the Romulator EPROM emulator an EPROM emulator that is compatible with our RT OBD1 Tuner (Real Time programming) program. They also carry a low cost EPROM eraser and their site has a good explanation of how EPROMs work and some other good general information. Please visit http://www.xtronics.com

See Programming Software Price List to view details on purchasing the OBD1 Tuning system. This system comes with Eraser, Burner, and all necessary adapters for NO SOLDERING. Optional Flash/Scanner cable available and always in stock.

Wester's Garage ... We'll get YOU going FAST!!
Thank you for visiting and remember to come back often as our product list is frequently updated!

Wester's Garage 2014
Updated 03/2014 ru

Home | Price List | Dealers | FAQ | Instructions | News | Dyno Results | Shipping | Contact Us | Search | Site Map
